Dust Collector/Welding Dust Removal Equipment/Fume Extractor for
Steel Production Line

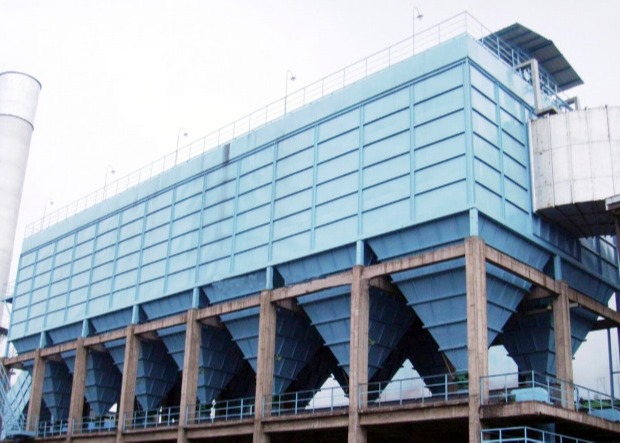

Air box pulse bag filter, our company makes it in the advanced
level of high efficiency. It combines the advantage of chamber blow
and injection pulse soot cleaning of all kinds of bag filter, and
overcomes the disadvantage of the chamber blow soot cleaning
insufficient strength, and the injection pulse ash removal and
filtering simultaneously, thus expands the application range of bag
filter. Due to the structure has the characteristics of this type
of filter, so it improves the efficiency of dust, prolong the
service life of filter bag.
The working principle of bag type dust collector is as follows:
rely on woven or felt woven (pressure) filter cloth as filter
material,
when dust gas passes through the filter bag, dust is blocked on the
surface of the filter bag, dry air is discharged through the gap
between the filter bag fibers, so as to achieve the purpose of
separation of dust gas and dust.Its working mechanism is the dust
through the filter cloth screen, inertia, adhesion, diffusion and
static electricity and other effects and capture.
| Model | DMC-24 | DMC-36 | DMC-48 | DMC-64 | DMC-80 | DMC-96 | DMC-120 |
| Total filtration area(m3) | 18 | 27 | 36 | 48 | 60 | 72 | 90 |
| Filter wind speed(m/min) | | 1.04-1.67 | 1.15-1.62 | 1.21-1.71 | 1.25-1.67 | 1.27-1.62 | 1.28-1.7 |
| Processing air volume(m3/h) | 1500 | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8500 |
| Number of filter bags(bars) | 24 | 36 | 48 | 64 | 80 | 96 | 120 |
| Air consumption(m/min) | 0.024 | 0.036 | 0.048 | 0.064 | 0.08 | 0.096 | 0.12 |
| Pulse valve(set) | 4 | 6 | 6 | 8 | 10 | 12 | 12 |
| Motor model(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 | 15 |
| Equipment weight(kg) | 300 | 500 | 850 | 1220 | 1450 | 2150 | 2550 |
| Inlet concentration(mg/Nm3) | 200 |
| Injection pressure(Mpa) | 0.5-0.7 |
| Withstand negative pressure(pa) | 5000 |
| Equipment resistance(pa) | ≦1200 |
Features:
1. 99.9% high dust removal efficiency, especially for micro dust.
2. PPC dust collector uses offline ash removal method, when a
chamber is removing dust, the filter air flow will be cut off to
avoid producing the secondary dust float in the sky, it improves
the effect and extended the service life of the filter bag.
3. It can capture different nature dust with the strong
adaptability.
4. PPC Dust collector machine adopts air box structure to reduce
the part resistance, and make it easier to install the filter bag.
5.Simple structure, stable operation, convenient maintenance
operation
Please kindly send your specific request, we would give you a
quotation plan.
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
