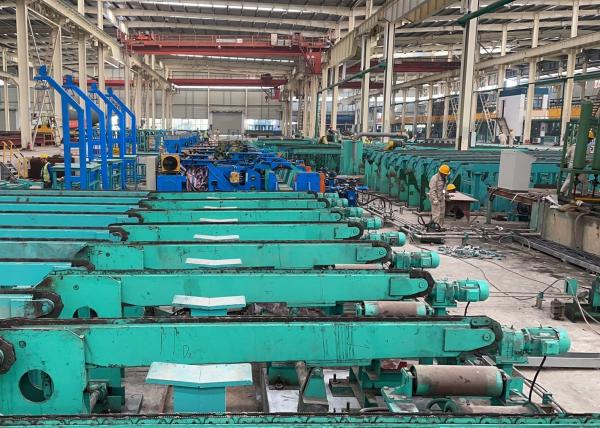

Bar and Wire Automatic Bundling Machine for Steel Production Line

Performance index:

1. Bundling diameter range:Φ100~Φ400

2. Bundle bale weight:1500KG-4000KG

3. Bundle bale shape:round

4. Suitable steel specification:deformed steel bar, (Φ10~140)round bar

5. Bundling object temperature:≤300℃

6. Bundling wire material and specification:Q195,specification is Φ5.5~7(recommend Φ6.5)green rod

7. Bundling type:single wrap, single knot

8. Knot angle:630°

9. Single track bundling time:7~12 seconds

10. Working temperature:-10℃-40℃

11. Control mode:manual and automatic with the function of interlocking communication with the production line

12. Installation weight:～4tons

13. Power supply:three-phase four-wire AC380V+PE 50HZ

14. Installed gross capacity:16KW

15. Contour size of the unit:3600x1250x2050

Feature:

1. Lift cover type panel, easy maintenance.

2. New electric heating device, fast heating, long service life.

3. Single chip electronic control, complete functions, easy operation.

4. Four bundling methods to ensure a wide range of customer bundling requirements.

5. Low cost of packing string.

Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:
