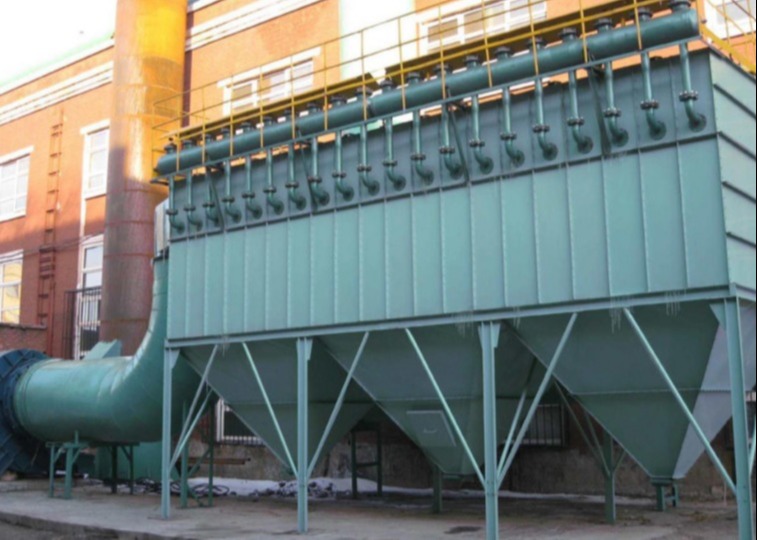

High Temperature Boiler Dust Collector with Blower for Industrial
Steel Production
Working Principle
The principle of bag dust collector: The dust contained air will be
sucking into the collector box firstly, then the filter bags will
resist the dust on its surface and make cleaning air through. At
the same time,the pulse jet system will jet compressed air to the
filter bag and make the dust which had adsorbed on the filter bag
surface to fall into ash hopper to be collected(Reuse).
All the above process will automatically finish under PLC control.
The efficiency of the total system would be 99.5%, dust contain
will be control under 30mg/m3 after filter.
Air flow range could from 3000 m³/h to 80000m³/h
Application:
it is widely used in furniture, hardware, ceramics, chemical,
building materials, smelting, sewage treatment and many other
fields, in order to meet your requirements, we can also customize
all kinds of environmental protection products for our customers.
Product advantages:
- Safe and reliable pulsing valves
The submerged pulsing valves is adopted, which has fast opening and
closing speed and small self-resistance. For filter-bag with a
length of 6m to 8m, the injection pressure is only 0.15-0.3Mpa, and
good ash removal effect can be obtained.
Strong ash cleaning ability. When cleaning ash, the acceleration
obtained on the surface of filter-bag is far greater than that of
other types of bag-type dust collector, and the cleaning is uniform
and the effect is good.
High filtering load. Due to the guarantee of strong ash cleaning,
even if the bug-type dust collector runs at a higher filtering wind
speed, its resistance will not be too high. Generally, 1200-1500Pa
is the same as that of the back blowing wind dust collector, which
is filtering surface, pulse-jet bag dust collector has a larger
processing air volume.
It is convenient to check and replace filter-bag. Filter-bag is
easy to install and change bags without binding. Operators do not
need to enter the inside of the box, and the operating environment
is good.
The equipment cost is low. Due to the high filtering load, the
filtering surface required t o process the same flue gas volume is
less than that of the reverse blowing wind bag dust collector, so
the equipment is compact and occupied a small area.
| Model | DMC-24 | DMC-36 | DMC-48 | DMC-64 | DMC-80 | DMC-96 | DMC-120 |
| Total filtration area(m3) | 18 | 27 | 36 | 48 | 60 | 72 | 90 |
| Filter wind speed(m/min) | | 1.04-1.67 | 1.15-1.62 | 1.21-1.71 | 1.25-1.67 | 1.27-1.62 | 1.28-1.7 |
| Processing air volume(m3/h) | 1500 | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8500 |
| Number of filter bags(bars) | 24 | 36 | 48 | 64 | 80 | 96 | 120 |
| Air consumption(m/min) | 0.024 | 0.036 | 0.048 | 0.064 | 0.08 | 0.096 | 0.12 |
| Pulse valve(set) | 4 | 6 | 6 | 8 | 10 | 12 | 12 |
| Motor model(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 | 15 |
| Equipment weight(kg) | 300 | 500 | 850 | 1220 | 1450 | 2150 | 2550 |
| Inlet concentration(mg/Nm3) | 200 |
| Injection pressure(Mpa) | 0.5-0.7 |
| Withstand negative pressure(pa) | 5000 |
| Equipment resistance(pa) | ≦1200 |
Please kindly send your specific request, we would give you a
quotation plan.
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
