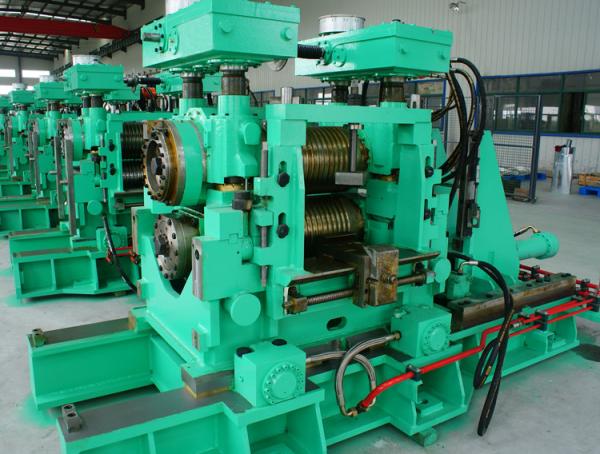

Short Stress Steel Rolling Mill Rebar Machine Steel Hot Rolling
Mill
The so-called short stress line rolling mill refers to a rolling
mill with a shortened stress loop. The stress loop referred to here
is a closed loop formed by the rolling mill under the action of the
rolling force in the unit of each stressed member such as the
stand, referred to as the stress line. The elastic deformation of
the stressed member is proportional to its length. Therefore,
shortening the length of the stress loop can reduce the elastic
deformation of the rolling mill and improve the rigidity of the
stand.
Short stress line rolling mill parts Transmission: motor, drive
shaft, worm gear, hand wheel, transmission gear Depressing device:
screw, depressing nut, balance nut, balance spring, spherical pad
Axial adjustment device: gear sleeve, gear ring, thrust bearing,
end cover, roll, bearing seat, auxiliary parts, etc.
Advantages of short stress rolling mill
The stress loop is short and the rigidity is high to ensure the
high precision of the product, and it is easy to achieve negative
deviation.
1. There are positive and negative threads at both ends of the
column, which can realize counterweight adjustment, and the rolling
center line remains unchanged. It can improve the operation rate,
save the time for maintenance and replacement of the guide and
guard beams, reduce operation accidents, avoid process accidents
such as rolling elbows, impact, and roll winding, and improve the
guide and guard life.
2. Convenient axial adjustment and small axial clearance.
3. The balance spring is used, the balance force is unchanged, and
the spring is compact in the bearing seat.
4. The rolling mill has good pre-adjustment performance, quick roll
change and high yield rate.
6. The bearing seat is automatically adjusted, and the four-row
cylindrical bearing is balanced in force, which improves the
bearing life.
| Summary comparison | Balance problem | Radial adjustment | Radial adjustment | Axial fixation |
| Old type short stress line rolling mill | Balance spring | Handwheel | Ring gear sleeve | Rectangular column |
| New type short stress line rolling mill | Damping rubber | Hydraulic motor | Worm gear and gear sleeve | Axial fixing sleeve tightly fit |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
