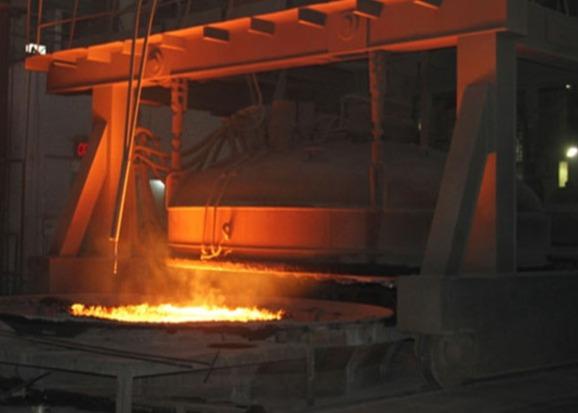

VD Vacuum Refining Furnace Vacuum Oxidization Decarbonization Vacuum degassing

The equipment structure of VOD vacuum refining furnace and VD vacuum refining furnace is basically the same, the main difference is that the VOD refining furnace adds an oxygen lance and its lifting system and oxygen supply system in the upper part of the vacuum seal cover, and blows oxygen to the molten steel in the ladle for decarburization under vacuum conditions.This method has the functions of decarburization, deoxygenation, degassing, desulfurization and alloying.VD/VOD is used for vacuum refining of molten steel. It has two structure forms: tank cover type and tank car type.

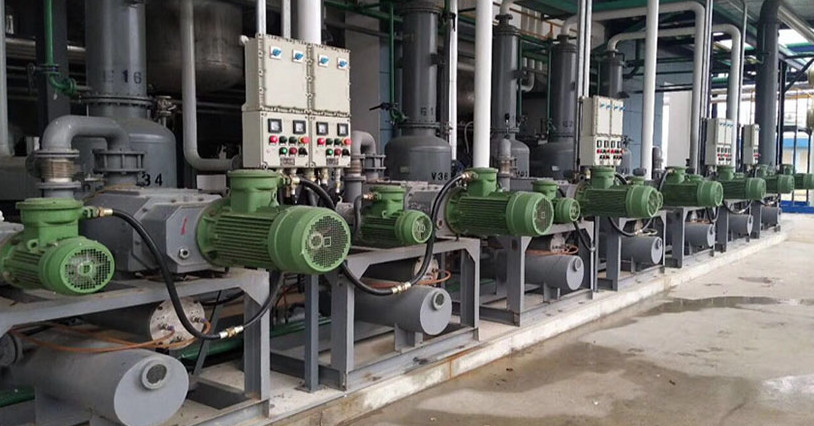

VD/VOD ladle refining furnace equipment is composed of vacuum tank or vehicle-mounted tank, vacuum tank cover, vacuum feeding device, oxygen blowing device (refers to VOD), electrical automation system, vacuum tube, dust removal device and vacuum pump, etc. The furnace tonnage ranges from 5T to 300T, mainly used for the production of stainless steel, manganese steel, ultra-low carbon alloy steel and alloy, etc.

Function:

1. Production of high quality low alloy steel, low carbon steel, bearing steel, alloy steel structure, stainless steel, die steel, tool steel, ultra-low carbon steel, etc., the gas in molten steel, inclusion, chemical composition of the steel has strict requirements;

2. Vacuum feeding, fine tuning of alloy composition;

3. Vacuum degassing;

4. Vacuum-oxygen decarbonizing

5. Bottom blowing argon stirring

Features:

1. The vacuum tank is sealed by a single hollow sealing ring and protected by water cooling.

2. The tank cover adopts butterfly head structure, high strength, uniform force;

3. Vacuum tank car adopts frequency conversion speed regulation, running smoothly;

4. The vacuum pipe adopts water-cooled pipe, which can reduce the exhaust gas temperature and airflow temperature;

5. The observation glass of artificial observation window is provided with inert gas protection and stroboscopic device or TV camera device;

6. Under vacuum conditions to achieve artificial temperature sampling and automatic feeding;

7. The oxygen blowing device is equipped with special sealing device, less wear and tear, anti-leakage, and easy to adjust the oxygen lance;

8. Argon stirring;

9. Equipped with PLC control system.

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Wuxi Yushun Metallurgy Technology Co., Ltd is a comprehensive enterprise integrating scientific research and development, engineering design, system integration, equipment installation, sales service, we serve numerous iron and steel enterprises domestic and overseas. Main projects include design and manufacture of technology, machinery, fluid, electric control for steel-making equipment, steel rolling equipment and steel deep processing.

We have professional from related area, experienced engineering technicians from design and research institute, iron and steel enterprise, we can joint research and development with domestic excellent enterprises with good technology and rich practical experience in metallurgical industry, customize high, intermediate and low grades configurations of production line or single equipment, provide overall design for smelting, continuous casting and steel rolling to meet the production requirements of low power consumption and high efficient, we also can contract turnkey project.

Wuxi Yushun Metallurgy Technology Co., Ltd takes the concepts of “customer first, technology-based” and meets the demands of customer including design, manufacture, installation, pre-sales guidance and after-sales service.

Choosing Wuxi Yushun Metallurgy Technology Co., Ltd as partner means choosing trust and guarantee, we can help your career development, let’s cooperate and create the future together. Sincerely welcome your presence and guidance.
