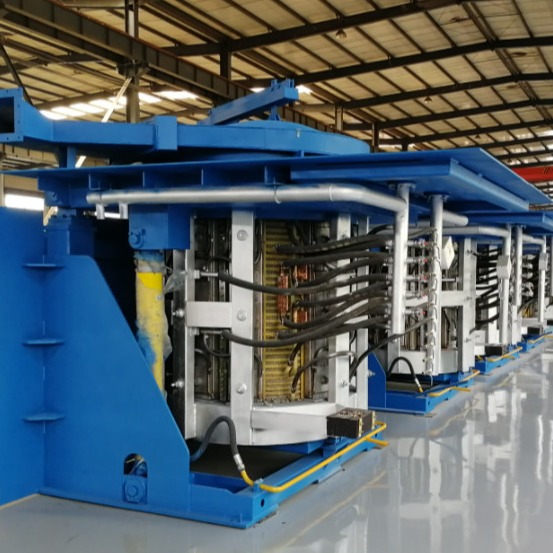

8T Intermediate Frequency Induction Steel Melting Furnace
Product point
1. Furnace body frame use national standard aluminum, nice
appearance looking ,not give hot.
2. The induction coil inside the furnace body is insulated by two
insulation treatment. First spray high temperature insulating
paint.
3. The water inlet and outlet of furnace body adopt water-cooled
copper plate to improve the service life of furnace lining.
4. The top of furnace body is designed with sliding cover design,
which makes it more convenient for maintenance personnel to
maintain the furnace body.
5. The cooling water pipe of the furnace body adopts high
temperature carbon-free hose.
The melting furnace mainly composed of power control cabinet and
melting furnace body.
- The equipment can meet 24 hours of continuous work.
- It have self-test function and leaking alarm device.
- Real-time detection of water temperature, water pressure,
over-current, over-voltage, lack phase information.
| Model | Rated Capacity | Input Voltage(V) | Rate Power(kw) | Rated Frequency(Hz) | Melting Time(min/stove) | Consume Electricity(kw/h/t) | Consume Water(M3/h) | Matched transformer(KVA) |
| GW-0.15 | 150 | 380 | 100 | 1000 | 85 | 800 | 3 | 150 |
| GW-0.25 | 250 | 380 | 160 | 1000 | 85 | 800 | 3 | 180 |
| GW-0.5 | 500 | 380 | 250 | 1000 | 80 | 750 | 5 | 250 |
| GW-1.0 | 1000 | 380 | 500 | 1000 | 75 | 750 | 8 | 500 |
| GW-1.5 | 1500 | 380 | 750 | 1000 | 75 | 720 | 10 | 800 |
| GW-2.0 | 2000 | 380/660 | 1000 | 500 | 75 | 700 | 12 | 1000 |
| GW-3.0 | 3000 | 660 | 1500 | 500 | 75 | 700 | 16 | 1500 |
Induction Melting Furnace:
It has the bottom of the oxygen blowing, reducing carbon, slagging
function.
Cyclone type smoke hood has excellent dust absorption , thermal
insulation effect and take up a small space.
Long service life.
Power Supply:
The utility model has the advantages of obvious energy saving
effect and 20% saving compared with common equipment.
It can achieve that one power supply cabinet for two
furnaces.Transformer utilization rate is high.
The two furnaces can cast simultaneously and also can supply
continuously molten steel casting.
Arbitrary power allocation, starting rate of 100%
Closed type cooling tower:
Heat exchanger:The materials of coil group is high quality of T2
depickling copper tube or stainless steel pipe .Set water tank and
the tower body is made of aluminum zinc steel plate plate and the
service life is over 15years.
Tilting Reducer:
The tilting reducer is equipped with three-stage turbine speed.
With good self-locking and stable rotary performance.
Capacitor Bank :
The double-layer mica insulation technology is used for the
insulation treatment of the capacitor.
Even if water is sprayed on the capacitor accidentally, the
insulation strength of the cabinet can be ensured.
Technical Parameter
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
