Cooler Cooling Bed for High Speed Bar Production Line for Rolling Mill

Features:

1. Electric and hydraulic charging type

2. Straight tooth and helical tooth (the rack has an angle with the center line and vertical line of approach table)

3. Double skirtboard, big rack and pinion rack

4. Scratch-proof cooling bed

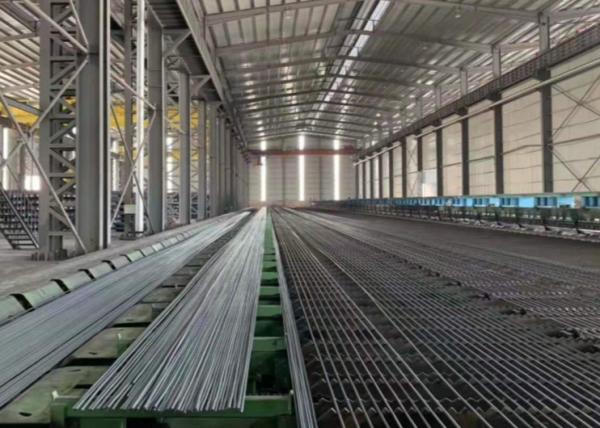

The bar cooling bed is used to accept the input of high temperature bar (round steel, rebar), straighten, cool and complete the assembling and conveying to the next procedure.

Cooling bed products are suitable for different specifications of bar (round steel, rebar), sizes including Φ10~ 50, Na 12~ 90, Na 20~ 90, Na 40~ 130, Na 50~ 180, Na 100~ 300 and so on

General process(thin-diameter rod): heating furnace--rolling--cooling bed--collecting

General process(large-diameter rod): heating furnace--rolling--grouping--sawing--cooling bed--collecting

Approach table

(1) function

The multiple feet bar after the segment flying shears is transported to the cold bed area and accelerated, so that the bar produces a certain initial tension, and keeps the bar running in a straight state. It also makes the bar can rise quickly after being cut off, and separates it from the bar that is still being rolled.

Braking apron board

(1) function

The braking apron board is a plate located on one side of the input roller table that can move vertically up and down.The friction resistance between the plate and the steel is used to make the steel brake, and the steel is fed into the cold bed straightening plate through the lifting movement.

Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
