Tooth extraction cooling bed Rack walking cooling bed Claw cooling
bed for Rebar Rolling Mill Equipment

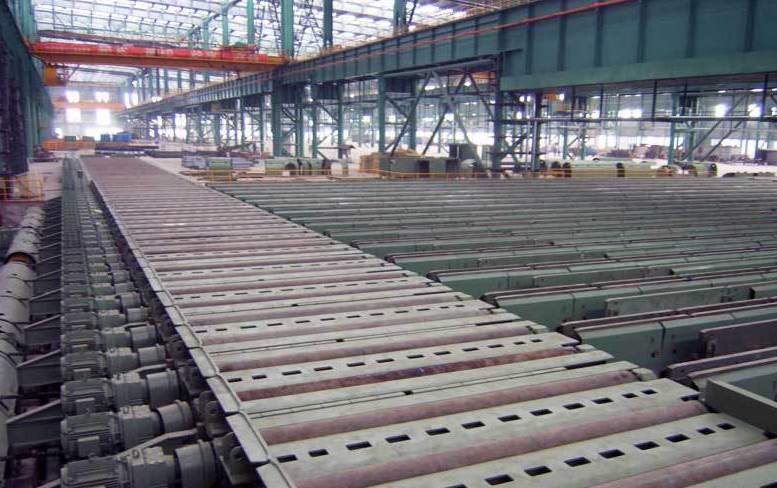

The cooling bed is a working table for effective cooling of rolled
products (rebar, steel, steel pipe, etc.) in the metallurgical
rolling industry. Cooling beds mainly include pull-tooth cooling
beds, rack stepping cooling beds, claw cooling beds, carrier chain
cooling beds, and rolling plate cooling beds.The cooling bed
transports the rolled products into the cooling bed through the
roller table, and then uses racks to pull the teeth step by step to
gradually move the workpieces arranged on the cooling bed to the
top of the cooling bed to achieve the cooling effect of the
workpiece . The cooling bed equipment is mainly used for slow and
natural cooling of bars after rolling. In the profile production
line, the cooling bed also has a pre-bending function for the
profile to prevent the profile from being irregularly bent due to
unequal quality during the natural cooling process.
Composition: The cooling bed is composed of a mechanical
transmission system, a water cooling system, a cooling bed work
surface, and a fixed bracket. Cooling bed is an important auxiliary
equipment in steel rolling production. The function of the cooling
bed is to cool the rolled pieces above 800°C to below 150-100°C,
and at the same time make the rolled pieces run in a predetermined
direction, and ensure that the rolled pieces are not bent during
transportation. Due to the wide range of shapes of rolled products,
the types of cooling beds in the rolling workshop are varied.
| Cooling bed size(m) |
| 1. | 120*10 |
| 2. | 120*12.5 |
| 3. | 120*13.5 |
| 4. | 120*38.5 |
| 5. | 100*12.5 |
| 6. | 72*14 |
| 7. | 66*7.5 |
Approach table
(1) function
The multiple feet bar after the segment flying shears is
transported to the cold bed area and accelerated, so that the bar
produces a certain initial tension, and keeps the bar running in a
straight state. It also makes the bar can rise quickly after being
cut off, and separates it from the bar that is still being rolled.
| Input roller table parameters |
| Diameter of roller | 188mm |
| Roller length | 175mm |
| Roller spacing | 1 200mm |
| Rolling speed | 4.5 ~ 18m /s |
| Line speed of roller table | 4.5 ~ 20m /s |
| The Angle between the surface and the level of the roller table | 12°(the front is gradually transferred from 0° to 12°) |
Braking apron board
(1)function
The braking apron board is a plate located on one side of the input
roller table that can move vertically up and down.The friction
resistance between the plate and the steel is used to make the
steel brake, and the steel is fed into the cold bed straightening
plate through the lifting movement.
Parameter
|
| Rolling piece length | 114m |
| Total length of dialing block | 165m(45m before the cold bed) |
| Dial block width | 130m |
| Dial block and horizontal plane Angle | 35° |
| Dial block lifting speed | 0. 15 ~ 0. 3 m /s |
Comparison of main structure and dimension parameters of cooling
beds
| Cooling bed (for small bar) | Cooling bed (for medium-sized bar) | Electric stepping cooling bed (for big bar) | Hydraulic stepping cooling bed (for big bar) | U/V cooling bed (for big bar) |
| Main type | Pomini | Before saw: Pomini; After saw: Danieli | Danieli | Danieli | Danieli |
| Bar specification | Ø10-50mm | Ø50-120mm | Ø70-350mm | Ø70-350mm | Ø50-250mm |
| Drive way | Motor | Motor | Motor | Motor | Motor |
| Transmission | Electric wheel | Electric wheel | Electric wheel | Moving beam | Electric wheel, four-bar linkage |
| Feeding way | Feed apron | Feed apron | After marshalling, sawing and row input, hydraulic steel pusher to
achieve single feeding | After marshalling, sawing and row input, hydraulic steel pusher to
achieve single feeding | After marshalling, sawing and row input, hydraulic steel pusher to
achieve single feeding |
| Tapping way | Tapping by lift after marshalling | Tapping by lift after marshalling | One by one | One by one | One by one |
Please kindly send your specific request, we would give you a
quotation plan.
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
