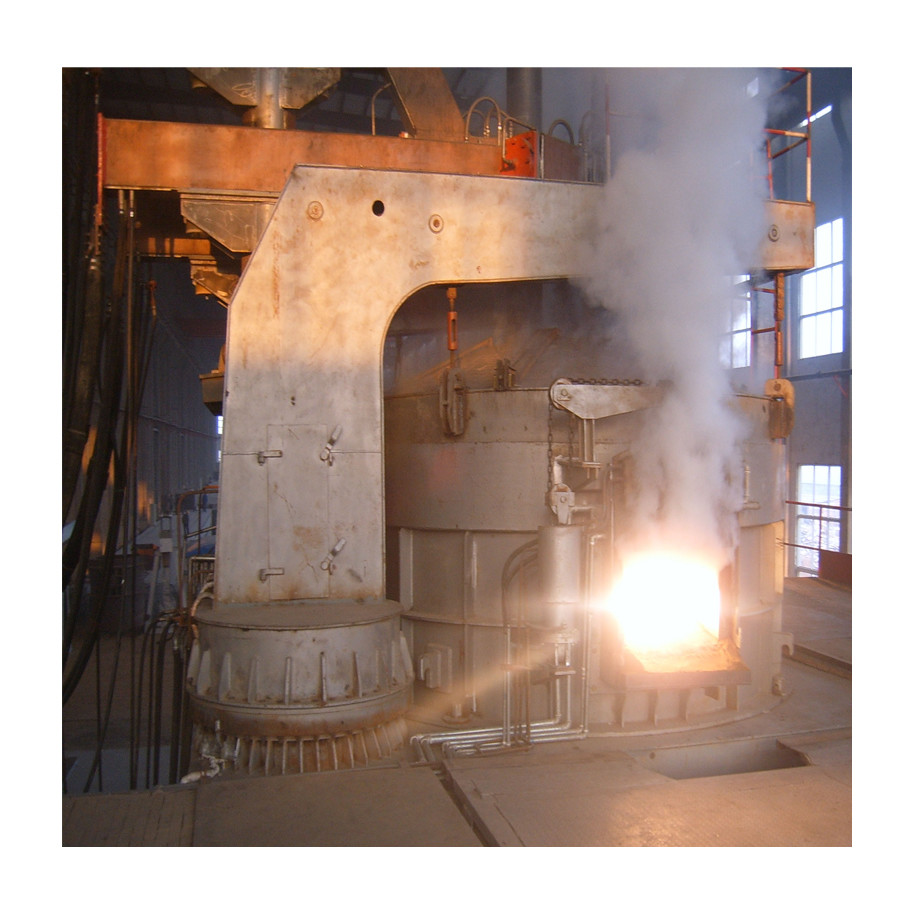

40Ton Electric Arc Furnace Steel Melting Equipment in Industrial Production

Application

EAF arc for a heat source to scrap as raw material for steel smelting general, high-quality carbon steel, alloy steel for various equipment for smelting. Its structure for the furnace cover rotary open top feeding, torque motor electrodes automatic adjustment movements, large cross-section of water-cooled cables, furnace and the furnace cover upgrading tilting rotation using hydraulic, electrical control by PLC control, technology advanced.

According to the power of the furnace is divided into ordinary power, high power, ultra-high power electric furnace.

Modern steelmaking electric furnace has widely adopted new technologies such as water cooled furnace cover, water cooled furnace wall, conductive lateral arm and eccentric bottom (EBT) tapping. With comprehensive energy utilization technology, furnaces of carbon steel lance and furnace door cluster oxygen lance are used for two times burning of CO in molten pool, making full use of chemical energy in flue gas to reduce electricity consumption and build foamed slag; and using high impedance technology to raise two When the secondary voltage is increased, the electric power is relatively stable, the impact on the power grid is reduced, the short network system current is smaller, the energy consumption and electrode consumption are reduced, and the effective input of electric power is improved.

Function

1. Used for scrap melting, decarbonization, dephosphorization, desulfuration, deoxygenation

and molten steel heating etc, for melting steel of different grades and components.

2. Partial hot metal charging or charging pig iron, sponge iron (DRI) and hot briquetted iron (HBI).

3. Additional charging during the melting process and primary alloying process.

Characteristics

1. Refractory material saving due to the water cooled roof and water cooled panels.

2. Slagless tapping and tapping temperature reducing result from EBT.

3. Impendence of large current reducing due to the cooper and steel composited conductive arm and large section water cooled cable.

4. Power consumption for per ton of steel and smelting period are reduced due to adopting furnace door C-O lance and furnace wall coherent oxygen lance.

5. Fume collection rate is increased due to adopting furnace roof fourth hole and other fume discharging methods.

6. Scrap steel continuous charging and preheating system could be applied thus save energy, reduce consumption and improve smelting efficiency.

7. Raw material (DRI, HBI), lime and alloy automatic charging system could be equipped.

8. Equipped with advanced PLC control system and smelting model.

Horizontal continuous feeding type EAF product

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Wuxi Yushun Metallurgy Technology Co., Ltd is a comprehensive enterprise integrating scientific research and development, engineering design, system integration, equipment installation, sales service, we serve numerous iron and steel enterprises domestic and overseas. Main projects include design and manufacture of technology, machinery, fluid, electric control for steel-making equipment, steel rolling equipment and steel deep processing.

We have professional from related area, experienced engineering technicians from design and research institute, iron and steel enterprise, we can joint research and development with domestic excellent enterprises with good technology and rich practical experience in metallurgical industry, customize high, intermediate and low grades configurations of production line or single equipment, provide overall design for smelting, continuous casting and steel rolling to meet the production requirements of low power consumption and high efficient, we also can contract turnkey project.

Wuxi Yushun Metallurgy Technology Co., Ltd takes the concepts of “customer first, technology-based” and meets the demands of customer including design, manufacture, installation, pre-sales guidance and after-sales service.

Choosing Wuxi Yushun Metallurgy Technology Co., Ltd as partner means choosing trust and guarantee, we can help your career development, let’s cooperate and create the future together. Sincerely welcome your presence and guidance.
