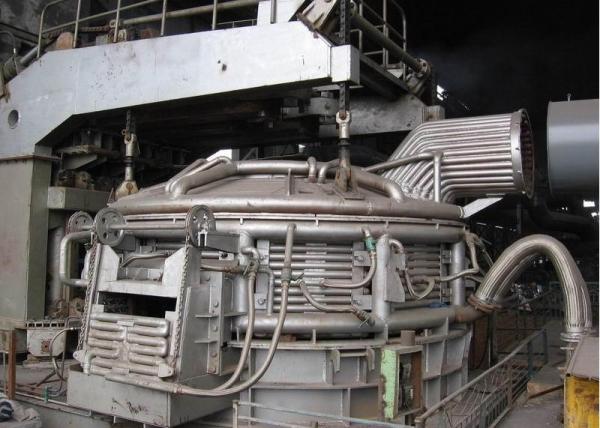

Steel Scrap Smelting 15Ton EAF Electric Arc Furnace for Steel Making

Steelmaking electric arc furnace is divided into normal power, high power and ultra high power according to matched power. It also can be divided into independent foundation, conjoined foundation, large pivotal bearing and four connecting link structure by roof rotating mechanism. There are left operation and right operation types for user's selection. It could be divided into continuous charging and non-continuous charging according to loading pattern.

The electric arc furnace consists of furnace body, furnace roof, tilting device, furnace lifting & rotating device, electrode lifting device, water-cooling device, hydraulic device, furnace transformer, secondary busbar, HV cabinet, LV electric and automatic control system etc. Capacity of EAF manufactured by our company is 10t-220t.

Function

1. Used for scrap melting, decarbonization, dephosphorization, desulfuration, deoxygenation and molten steel heating etc, for melting steel of different grades and components.

2. Partial hot metal charging or charging pig iron, sponge iron (DRI) and hot briquetted iron (HBI).

3. Additional charging during the melting process and primary alloying process.

Characteristics

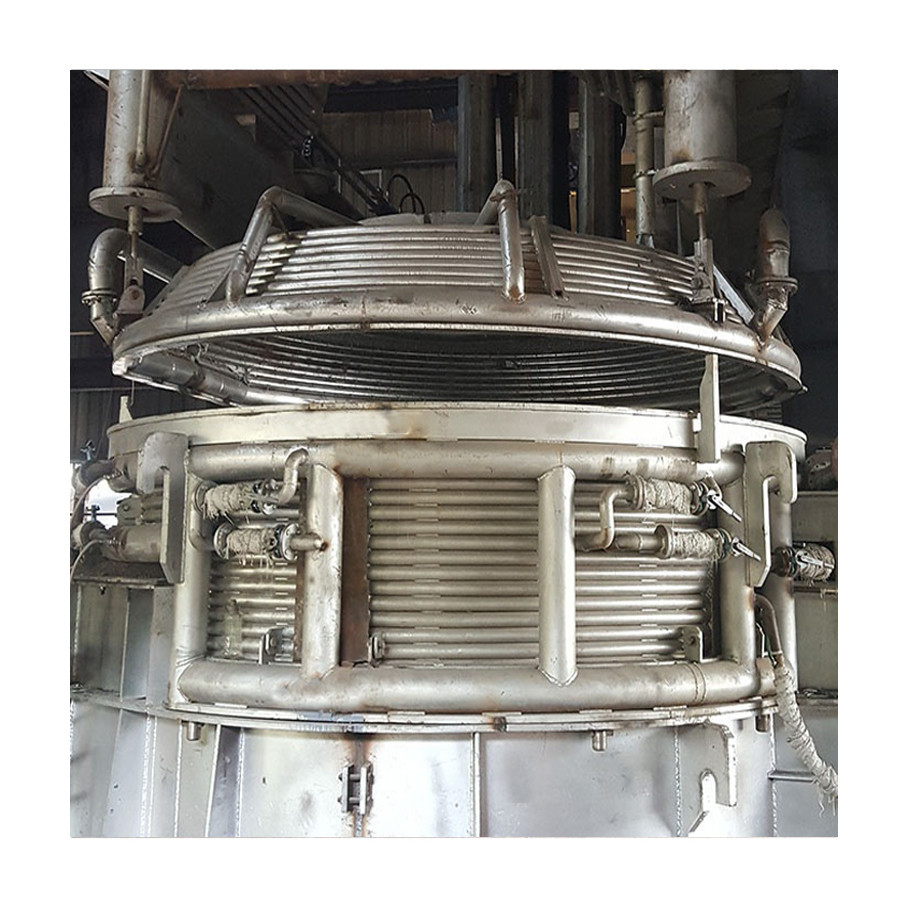

1. Refractory material saving due to the water cooled roof and water cooled panels.

2. Slagless tapping and tapping temperature reducing result from EBT.

3. Impendence of large current reducing due to the cooper and steel composited conductive arm and large section water cooled cable.

4. Power consumption for per ton of steel and smelting period are reduced due to adopting furnace door C-O lance and furnace wall coherent oxygen lance.

5. Fume collection rate is increased due to adopting furnace roof fourth hole and other fume discharging methods.

6. Scrap steel continuous charging and preheating system could be applied thus save energy, reduce consumption and improve smelting efficiency.

7. Raw material (DRI, HBI), lime and alloy automatic charging system could be equipped.

8. Equipped with advanced PLC control system and smelting model.

Horizontal continuous feeding type EAF product

Application

EAF arc for a heat source to scrap as raw material for steel smelting general, high-quality carbon steel, alloy steel for various equipment for smelting. Its structure for the furnace cover rotary open top feeding, torque motor electrodes automatic adjustment movements, large cross-section of water-cooled cables, furnace and the furnace cover upgrading tilting rotation using hydraulic, electrical control by PLC control, technology advanced.

Selling Units: Single item

Single package size: 150*100*170cm

Single gross weight: 100,000kg

Package Type: Safety Seaworthy Package

Lead Time:

Wuxi Yushun Metallurgy Technology Co., Ltd is a comprehensive enterprise integrating scientific research and development, engineering design, system integration, equipment installation, sales service, we serve numerous iron and steel enterprises domestic and overseas. Main projects include design and manufacture of technology, machinery, fluid, electric control for steel-making equipment, steel rolling equipment and steel deep processing.

We have professional from related area, experienced engineering technicians from design and research institute, iron and steel enterprise, we can joint research and development with domestic excellent enterprises with good technology and rich practical experience in metallurgical industry, customize high, intermediate and low grades configurations of production line or single equipment, provide overall design for smelting, continuous casting and steel rolling to meet the production requirements of low power consumption and high efficient, we also can contract turnkey project.

Wuxi Yushun Metallurgy Technology Co., Ltd takes the concepts of “customer first, technology-based” and meets the demands of customer including design, manufacture, installation, pre-sales guidance and after-sales service.

Choosing Wuxi Yushun Metallurgy Technology Co., Ltd as partner means choosing trust and guarantee, we can help your career development, let’s cooperate and create the future together. Sincerely welcome your presence and guidance.
