Automatic Feeding Steel Billet 1250c Reheat /Reheating Furnace For Rolling Mill

Details

Billets, Bars, slab induction heating systems include high efficiency electrical energy KGPS powers upply units ranges from 50KW to 50000KW,frequencies between 60 and 10,000 hertz,electro-magnetically shunted heating induction furnace coils assembled to the heating sensor, capacitor assembly bank,water cooled cables to supply unifom heating, temperature equalization heated billets, bars and slabs at the proper temperature before rooling mill opeartion.

Application
Application:Mainly apply for the whole metal materials heating before the forging, extrusion, hot rolling and cutting,and metal materials quenching and tempering, annealing, tempering and other heat treatment as a whole.

Features:

1. Steel can be heated from all sides, high thermal efficiency, short heating time, less oxidized sheet, less possibility of decarburization, will not produce sticky steel, steel surface will not produce scratches, is conducive to the elimination of black marks, improve the heating quality.

2. Low energy consumption, flexible operation.

Be adaptable. It is suitable for heating a variety of steel materials such as ingot, billet, slab, round billet, etc. The requirements on the length, thickness and other aspects of steel materials are not strict.

Manufacturing process of walking beam furnace

The front part of the feeding roller table → weighing → measuring length → positioning of the feeding roller table → opening of the feeding furnace door → hydraulic steel pusher → measuring the billet width → positioning on the billet walking beam → the mechanical equipment (including hydraulic system) of the heating furnace move according to the process design. The billet is heated in the furnace according to the heating process requirements → the billet is positioned through the laser detection point → the steel signal is required → the discharge furnace door rises → the steel is taken by the steel holder → the billet is positioned on the discharge roller → the furnace door is closed → descaling and rolling.

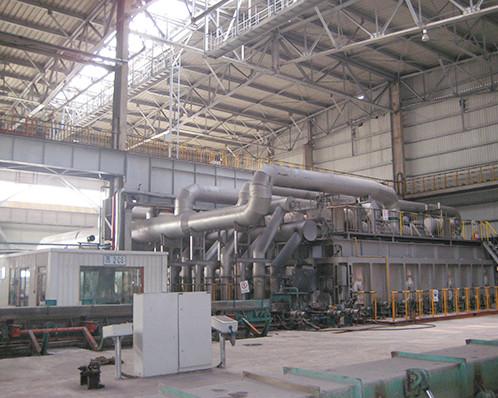

Technical performance of 100t/h walking beam furnace

Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:

specification

Wuxi Yushun Metallurgy Technology Co., Ltd is a comprehensive enterprise integrating scientific research and development, engineering design, system integration, equipment installation, sales service, we serve numerous iron and steel enterprises domestic and overseas. Main projects include design and manufacture of technology, machinery, fluid, electric control for steel-making equipment, steel rolling equipment and steel deep processing.

We have professional from related area, experienced engineering technicians from design and research institute, iron and steel enterprise, we can joint research and development with domestic excellent enterprises with good technology and rich practical experience in metallurgical industry, customize high, intermediate and low grades configurations of production line or single equipment, provide overall design for smelting, continuous casting and steel rolling to meet the production requirements of low power consumption and high efficient, we also can contract turnkey project.

Wuxi Yushun Metallurgy Technology Co., Ltd takes the concepts of “customer first, technology-based” and meets the demands of customer including design, manufacture, installation, pre-sales guidance and after-sales service.

Choosing Wuxi Yushun Metallurgy Technology Co., Ltd as partner means choosing trust and guarantee, we can help your career development, let’s cooperate and create the future together. Sincerely welcome your presence and guidance.

Client Meeting
