1100C Walking Beam Furnace Aluminum Melting Continuous Induction Furnace

Ask Lasest Price
Brand Name :	Yushun
Model Number :	Customized
Certification :	ISO 9001
Price :	Negotiated
Payment Terms :	T/T, L/C
Supply Ability :	1 set 30 days
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

1100C Walking Beam Furnace Aluminum Melting Continuous Induction Furnace

35t/h Walking Beam Continuous Heating Furnace Feeder End Charging and Discharging Product

Feature of Rotary Copper & Aluminum Melting Furnace
(1) As an energy saving metal furnace,our product is one of the most clean energy recognized by the state environmental protection department.
(2) Furnace body structure is very strong with good material.
(3) Internal grade refractory material is very durable .
(4) Equipped with aluminum water leakage alarm power-off device.
(5) Temperature control system uses the artificial intelligence temperature controller, the temperature is accurate,the intellectualized control.
(6) Our Aluminum melting furnace is easy to operate.

Main technical parameter

Technical performance table

No.	Item	Unit	Value
1	Usage		Heating before billet rolling
2	Heating steel grade		Ordinary carbon steel, low alloy steel, high quality carbon steel, excellent special steel
3	Standard billet size	mm	(150×150-380×380)×(4600-6100)
4	Single weight of billet	kg	767--6420
5	Heating temperature	℃	1030~1150
6	Furnace output	t/h	Rated 35 (cold charging)
7	Effective bottom strenght	kg/m².h	Rated 465
8	Fuel type		Natural gas
9	Low calorific value of fuel	kJ/Nm³	8500±100x4.18
10	Charging temperature	℃×	Cold charging: normal temperature
11	Unit heat consumption	kJ/kg billet	300×4.18(cold charging)
12	Gas consumption	Nm³/h	1260
13	Air consumption	Nm³/h	12600
14	Flue gas amount	Nm³/h	13860
15	Heating method and burner		Low nitrogen burner, side wall of heating section, upper wall of soaking section
16	Air heat exchanger type		Metal tubular convection heat exchanger with plug
17	Air preheating temperature	℃	350
18	Walking beam cooling method		Water cooling
19	Consumption of cooling water	m³/h	300
20	Walking mechanism transmission mode		Hydraulic
21	Walking parameter	mm	Step pitch:270
21	Walking parameter	mm	Lifting: 100+100
22	Walking period	sec	35

Energy medium requirements

	Flow	Pressure	Heat value	Requirement
Natural gas	1600Nm³/h (connection point)	~8000Pa (There is a pressure stabilizer for air supply in the workshop)	(8500±100)x4.18kJ/Nm³
Nitrogen for piping purging	100 m³/time	0.25 MPa

Gas for pneumatic mechanism	200 m³/h	0.6 Mpa		no oil, water removal
Gas for instrument	50 m³/h	0.6 Mpa		no oil, water removal, the impurity particle is not larger than 5um
Clean circulation water for furnace equipment	100 m³/h	0.4 Mpa
Turbid circulation water for water seal and slag flushing system	30 m³/h	0.25Mpa
Accident water	150 m³/h	0.2Mpa

Technical performance table

No.	Item	Unit	Value
1	Usage		Heating before billet rolling
2	Heating steel grade		Ordinary carbon steel, low alloy steel, high quality carbon steel, excellent special steel
3	Standard billet size	mm	(150×150-380×380)×(4600-6100)
4	Single weight of billet	kg	767--6420
5	Heating temperature	℃	1030~1150
6	Furnace output	t/h	Rated 35 (cold charging)
7	Effective bottom strenght	kg/m².h	Rated 465
8	Fuel type		Natural gas
9	Low calorific value of fuel	kJ/Nm³	8500±100x4.18
10	Charging temperature	℃×	Cold charging: normal temperature
11	Unit heat consumption	kJ/kg billet	300×4.18(cold charging)
12	Gas consumption	Nm³/h	1260
13	Air consumption	Nm³/h	12600
14	Flue gas amount	Nm³/h	13860
15	Heating method and burner		Low nitrogen burner, side wall of heating section, upper wall of soaking section
16	Air heat exchanger type		Metal tubular convection heat exchanger with plug
17	Air preheating temperature	℃	350
18	Walking beam cooling method		Water cooling
19	Consumption of cooling water	m³/h	300
20	Walking mechanism transmission mode		Hydraulic
21	Walking parameter	mm	Step pitch:270
21	Walking parameter	mm	Lifting: 100+100
22	Walking period	sec	35

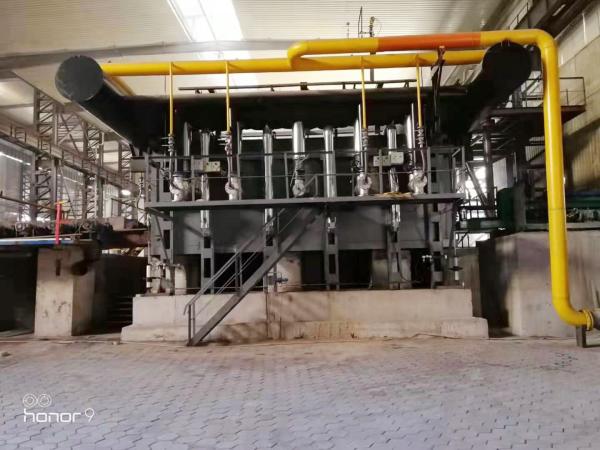

1100C Walking Beam Furnace Aluminum Melting Continuous Induction Furnace

1100C Walking Beam Furnace Aluminum Melting Continuous Induction Furnace
Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:

Quantity(Sets)	1-1	>1
Est.Time(Days)	30	To be negotiated
