Continuous Heating Furnace 35t / H Walking Beam Feeder Cold Charging

Ask Lasest Price
Brand Name :	Yushun
Model Number :	Customized
Certification :	ISO 9001
Price :	Negotiated
Payment Terms :	T/T, L/C
Supply Ability :	1 set 30 days
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Continuous Heating Furnace 35t / H Walking Beam Feeder Cold Charging

Walking Beam Continuous Heating Furnace Feeder Cold Charging
Product description

Equipped with advanced and perfect EIC integration heating furnace automation system, decentralized control and management of heating furnace systems and processes.

Walking mechanism adopts low height difference of "one layer and a half" double-layer frame structure, the structure is shallower than the traditional double-layer frame foundation (civil foundation elevation difference of about 900mm), light weight equipment, advanced technology, high precision operation, convenient maintenance;

Main technical parameter

Technical performance table

No.	Item	Unit	Value
1	Usage		Heating before billet rolling
2	Heating steel grade		Ordinary carbon steel, low alloy steel, high quality carbon steel, excellent special steel
3	Standard billet size	mm	(150×150-380×380)×(4600-6100)
4	Single weight of billet	kg	767--6420
5	Heating temperature	℃	1030~1150
6	Furnace output	t/h	Rated 35 (cold charging)
7	Effective bottom strenght	kg/m².h	Rated 465
8	Fuel type		Natural gas
9	Low calorific value of fuel	kJ/Nm³	8500±100x4.18
10	Charging temperature	℃×	Cold charging: normal temperature
11	Unit heat consumption	kJ/kg billet	300×4.18(cold charging)
12	Gas consumption	Nm³/h	1260
13	Air consumption	Nm³/h	12600
14	Flue gas amount	Nm³/h	13860
15	Heating method and burner		Low nitrogen burner, side wall of heating section, upper wall of soaking section
16	Air heat exchanger type		Metal tubular convection heat exchanger with plug
17	Air preheating temperature	℃	350
18	Walking beam cooling method		Water cooling
19	Consumption of cooling water	m³/h	300
20	Walking mechanism transmission mode		Hydraulic
21	Walking parameter	mm	Step pitch:270
21	Walking parameter	mm	Lifting: 100+100
22	Walking period	sec	35

Brief introduction

No.	Item	Value
1.	Furnace type	feeder end charging/end discharging, walking beam type continuous heating furnace, rated capacity is 35t/h(cold charging)
2.	Billet specification	(150-380)mm×(4600-6100)mm
3.	Single weight	767--6420 kg/pcs
4.	Off-size billet	≥4500mm, quantity of off-size is no more than 10%
5.	Billet tortuosity	≤10mm/m, overall length ≤100mm
6.	Billet cross section dimensional accuracy	±5mm
7.	Billet length dimensional accuracy	+80mm
8.	Heating steel	carbon structural steel, high quality carbon structural steel, low alloy steel, late part of the excellent special steel
9.	Billet charging temperature	normal temperature
10.	Billet heating temperature	1100~1150℃
11.	Fuel type	natural gas
12.	Heat value	Q low = (8500±100) ×4.18KJ/Nm3
13.	Pressure	～8000Pa

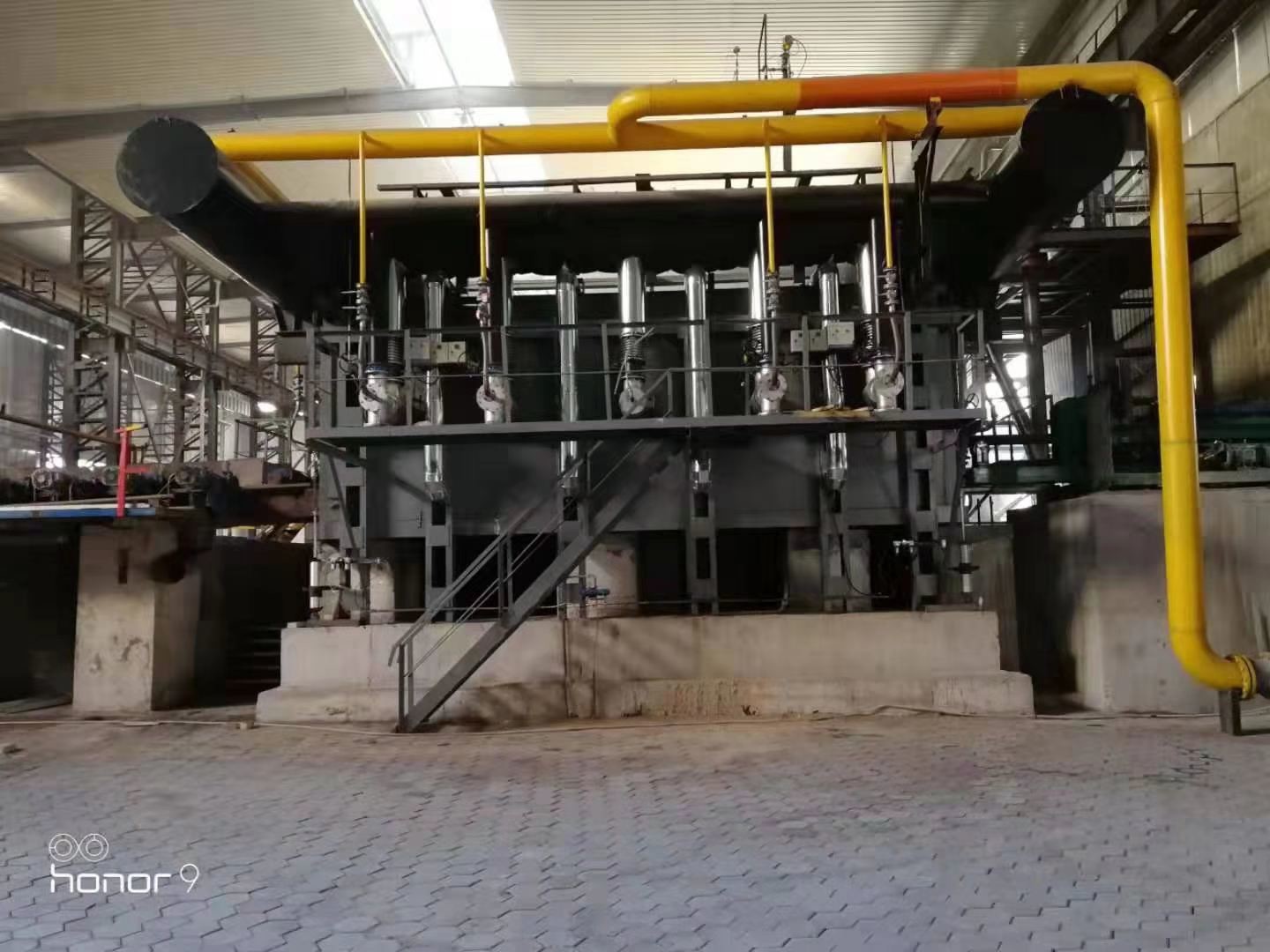

Continuous Heating Furnace 35t / H Walking Beam Feeder Cold Charging

Continuous Heating Furnace 35t / H Walking Beam Feeder Cold Charging
Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:

Quantity(Sets)	1-1	>1
Est.Time(Days)	30	To be negotiated

specification
