Walking Beam Heating Furnace Cold Charging Low Nitrogen Combustion

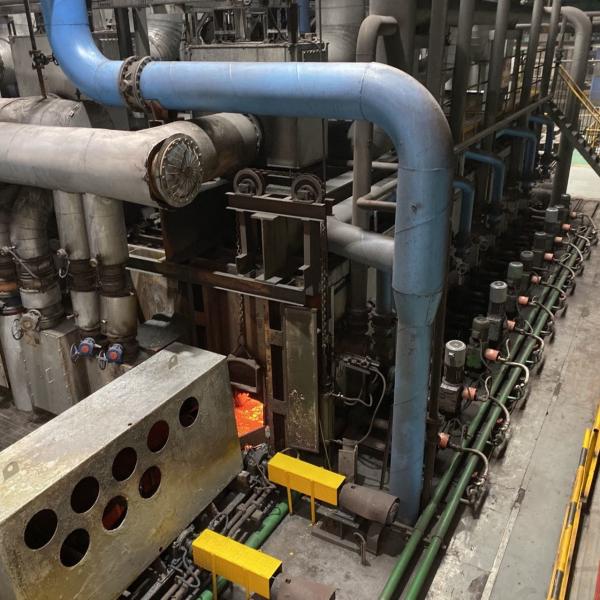

Cold Charging Low Nitrogen Combustion Walking Beam Heating Furnace
Walking Beam Heating Furnace Cold Charging Low Nitrogen Combustion

This project involves the design, manufacture, construction and installation, masonry, coating, commissioning of cold and hot state, personnel training and turnkey project of a walking beam heating furnace with rated output of 35 t/h (cold installation) until normal operation.

It adopts low-nitrogen combustion system, via the two-stroke preheater to preheat combustion air to 350℃, fully recover flue gas heat, save fuel consumption at the same time, reduce the cost of combustion system and spare parts and long-term maintenance, significantly reduce the operating cost; Both theory and practice have proved that fuel consumption can be reduced by 5% when combustion air is increased by 100℃.

Main technical parameter

Technical performance table

No.	Item	Unit	Value
1	Usage		Heating before billet rolling
2	Heating steel grade		Ordinary carbon steel, low alloy steel, high quality carbon steel, excellent special steel
3	Standard billet size	mm	(150×150-380×380)×(4600-6100)
4	Single weight of billet	kg	767--6420
5	Heating temperature	℃	1030~1150
6	Furnace output	t/h	Rated 35 (cold charging)
7	Effective bottom strenght	kg/m².h	Rated 465
8	Fuel type		Natural gas
9	Low calorific value of fuel	kJ/Nm³	8500±100x4.18
10	Charging temperature	℃×	Cold charging: normal temperature
11	Unit heat consumption	kJ/kg billet	300×4.18(cold charging)
12	Gas consumption	Nm³/h	1260
13	Air consumption	Nm³/h	12600
14	Flue gas amount	Nm³/h	13860
15	Heating method and burner		Low nitrogen burner, side wall of heating section, upper wall of soaking section
16	Air heat exchanger type		Metal tubular convection heat exchanger with plug
17	Air preheating temperature	℃	350
18	Walking beam cooling method		Water cooling
19	Consumption of cooling water	m³/h	300
20	Walking mechanism transmission mode		Hydraulic
21	Walking parameter	mm	Step pitch:270
21	Walking parameter	mm	Lifting: 100+100
22	Walking period	sec	35

Energy medium requirements

	Flow	Pressure	Heat value	Requirement
Natural gas	1600Nm³/h (connection point)	~8000Pa (There is a pressure stabilizer for air supply in the workshop)	(8500±100)x4.18kJ/Nm³
Nitrogen for piping purging	100 m³/time	0.25 MPa

Gas for pneumatic mechanism	200 m³/h	0.6 Mpa		no oil, water removal
Gas for instrument	50 m³/h	0.6 Mpa		no oil, water removal, the impurity particle is not larger than 5um
Clean circulation water for furnace equipment	100 m³/h	0.4 Mpa
Turbid circulation water for water seal and slag flushing system	30 m³/h	0.25Mpa
Accident water	150 m³/h	0.2Mpa
