Section Steel Stacker Crane Mechanical Equipment Metallurgical Industry

Ask Lasest Price
Brand Name :	Yushun
Model Number :	Customized
Certification :	ISO 9001
Price :	Negotiated
Payment Terms :	L/C, T/T
Supply Ability :	Negotiated
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Section Steel Stacker Crane Mechanical Equipment Metallurgical Industry

Section Steel Stacker Crane Mechanical Equipment Metallurgical Industry

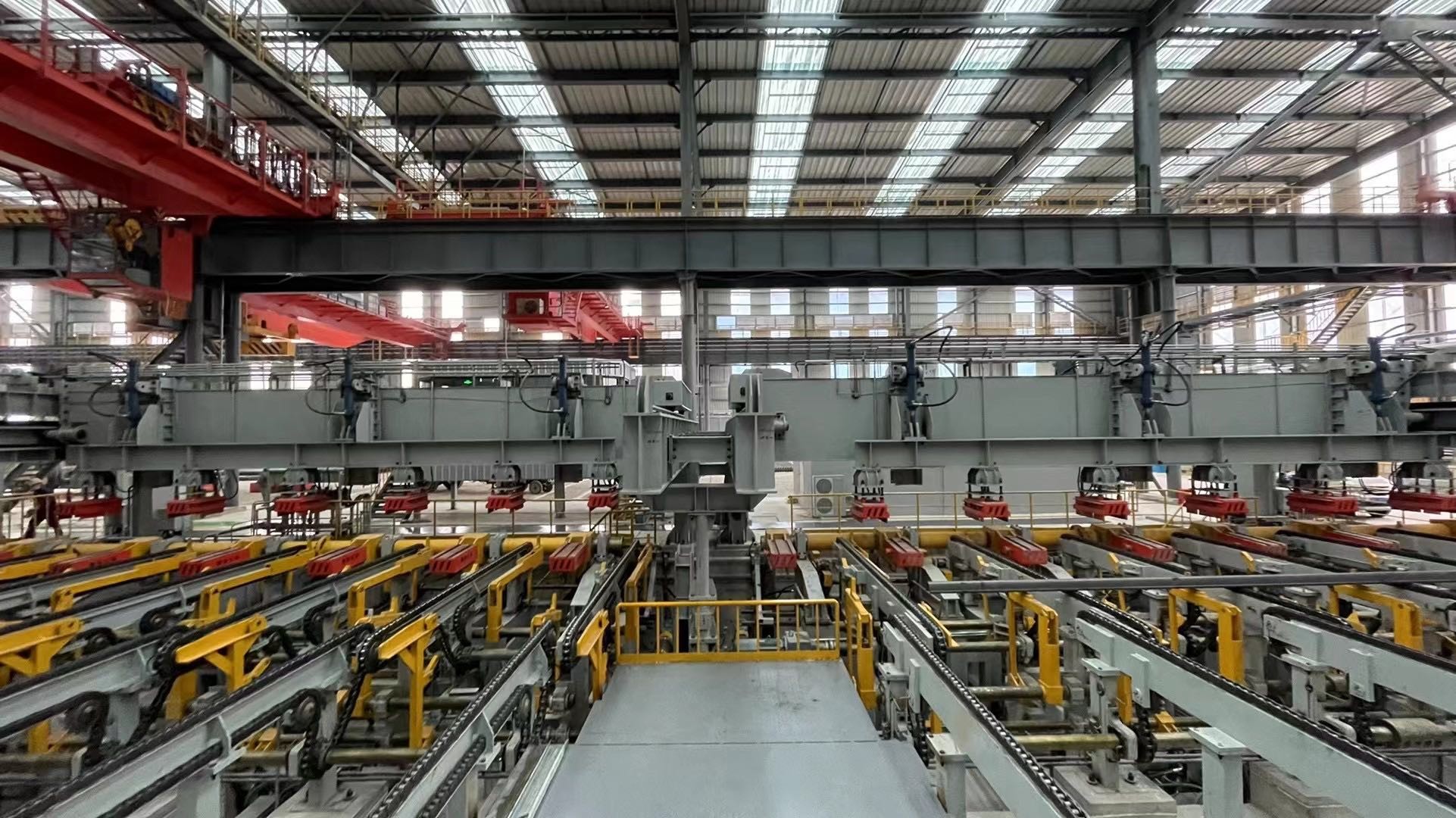

The steel palletizing machine is mainly composed of four parts: sorting device, conveying device (ⅰ), turning device (ⅱ) and palletizing conveying device (ⅲ), assisted by counting cutting device, hydraulic circuit system and electrical control system. In order from front to back, it is divided into inclined chain, front section chain, counting device, cutting device, back section chain, spindle turnover device, suction cup turnover device, fixed tray, alignment device, movable tray, packaging frame, hydraulic circuit system and electrical control system.

Equipment composition

No.	Equipment name
1.	Inclined chain
2.	Forepart chain
3.	Counting device
4.	Separating device
5.	Rear chain
6.	Spindle turnover device
7.	Suction cup turning device
8.	Fixed tray
9.	Alignment device
10.	Movable tray
11.	Packing rack
12.	Hydraulic circuit system
13.	Electrical control system

Main function

No.	Function description
1.	It can realize automatic arrangement, accurate counting, quantitative separation, turning palletizing and automatic palletizing functions of section steel.
2.	It can realize the positive and negative layer palletizing, but also according to user needs, complete different number of roots, different layers of palletizing.
3.	Instead of the original manual operation, solve the high temperature environment, high intensity labor, and save labor.
4.	Intelligent multi-control mode design, to meet the user's various production needs.

Major technological innovations

No.	Description
1.	The whole machine adopts modular structure, which can be assembled quickly. Parts can be replaced quickly to improve maintenance efficiency.
2.	Hydraulic energy storage system ensures the stability and constancy of oil pressure system.
3.	Automatic unloading decompression when suspension and stop, to ensure the safety of use.
4.	Intelligent multi-control mode, humanized to meet different needs of users.
5.	High ductility. The back can be connected with automatic baling machine to realize full automatic production of section steel production line.

Main technical parameter

No.	Item	Value
1.	Equipment external dimension L×W×H	6500×7500×1900
2.	Inclined chain speed	12RPM
3.	Forepart chain speed	18RPM
4.	Rear chain speed	23RPM
5.	Spindle turnover range	0 ° ～180 °
6.	Suction cup turning device turnover range	0 ° ～300 °
7.	Hydraulic system pressure	0～16MPa
8.	Hydraulic system flow	40 ～ 60L/MIN
9.	Total power	26KW

Section Steel Stacker Crane Mechanical Equipment Metallurgical Industry

Section Steel Stacker Crane Mechanical Equipment Metallurgical Industry

Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:

Quantity (Tons)	1-100	>100
Est. Time(Days)	60	To be negotiated
