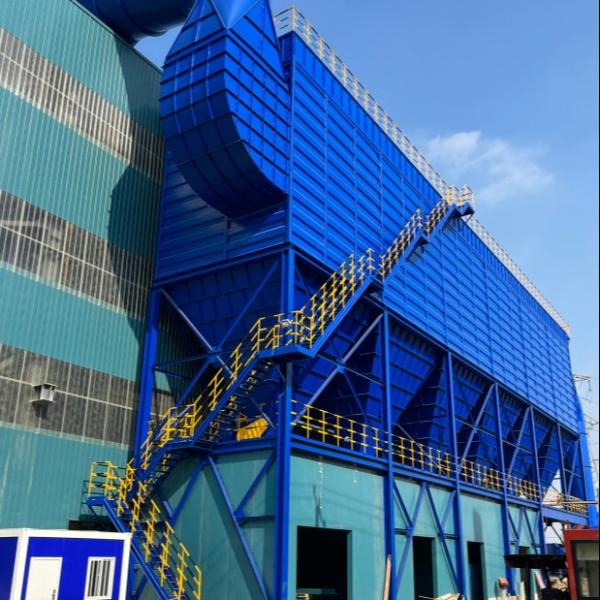

High Efficiency Industrial Dust Collector 1200-20000m2 Air
Pollution Control
The dust collector is mainly composed of dust hopper, filter
chamber, clean air chamber, bracket, lift valve, jet blowing dust
cleaning device and other parts. When working, dusty gas enters the
ash hopper from the air duct. Large particles of dust directly fall
into the bottom of the hopper, smaller dust with the airflow
turning upward into the filter chamber, and is blocked in the outer
surface of the filter bag, purified flue gas into the bag, and
through the bag mouth and clean air chamber into the air outlet,
discharged by the exhaust vent.
With the continuous filtration, the dust on the surface of the
filter bag increases, and the resistance of the equipment rises.
When the resistance of the equipment rises to a certain value, the
dust removal operation should be carried out to remove the dust
accumulation on the surface of the filter bag
The operating pressure of bag dust collector is determined
according to the static pressure value and installation position of
the device and fan before and after the dust collector, and it is
also the design pressure value of bag dust collector
Air cooled heat exchanger type
1. Forced-draft horizontal air cooled heat exchanger
2. Induced-draft horizontal air cooled heat exchanger
3. Sloped-top air cooled heat exchanger
Advantage:
1. High dust removal efficiency: generally above 99%, dust
concentration of the outlet gas of the dust collector is within a
few 10mg/m³, which is effective and high classification efficiency
for the fine dust of submicron particles.
2. The treatment air volume range is wide: the small one is only
1min m³, the large one is up to 1min tens of thousands of m³, which
can not only be used for dust removal of flue gas in industrial
furnace cellar, but also reduce the emission of air pollutants.
3. Simple structure: low operating cost, easy maintenance and
operation.
4. High temperature resistance: glass fiber,
polytetrafluoroethylene, P84 high temperature resistance filter
bag, can be operated under high temperature conditions above 200℃.
| Model | DMC-24 | DMC-36 | DMC-48 | DMC-64 | DMC-80 | DMC-96 | DMC-120 |
| Total filtration area(m3) | 18 | 27 | 36 | 48 | 60 | 72 | 90 |
| Filter wind speed(m/min) | | 1.04-1.67 | 1.15-1.62 | 1.21-1.71 | 1.25-1.67 | 1.27-1.62 | 1.28-1.7 |
| Processing air volume(m3/h) | 1500 | 1500-2400 | 2500-3500 | 3500-5000 | 4500-6000 | 5500-7000 | 6500-8500 |
| Number of filter bags(bars) | 24 | 36 | 48 | 64 | 80 | 96 | 120 |
| Air consumption(m/min) | 0.024 | 0.036 | 0.048 | 0.064 | 0.08 | 0.096 | 0.12 |
| Pulse valve(set) | 4 | 6 | 6 | 8 | 10 | 12 | 12 |
| Motor model(kw) | 2.2 | 3 | 3 | 5.5 | 5.5 | 7.5 | 15 |
| Equipment weight(kg) | 300 | 500 | 850 | 1220 | 1450 | 2150 | 2550 |
| Inlet concentration(mg/Nm3) | 200 |
| Injection pressure(Mpa) | 0.5-0.7 |
| Withstand negative pressure(pa) | 5000 |
| Equipment resistance(pa) | ≦1200 |
| Place of Origin: | Jiangsu, China |
| Condition: | New |
| Specification: | 1200㎡-20000㎡ |
| Type: | Environment protection equipment |
| Usage: | Industrial dust collection |
| Size: | According to the actual condition |
| Warranty: | 1 Year |
| After-sales- service Provided: | Video technical support, online support |
| Applicable industries: | Manufacturing plant, construction works, building material shops |
| Color: | Customized |
Packaging Details: normal package naked or according to customers'
request
Port: Tianjin Port
Lead Time:
| Quantity(Sets) | 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
