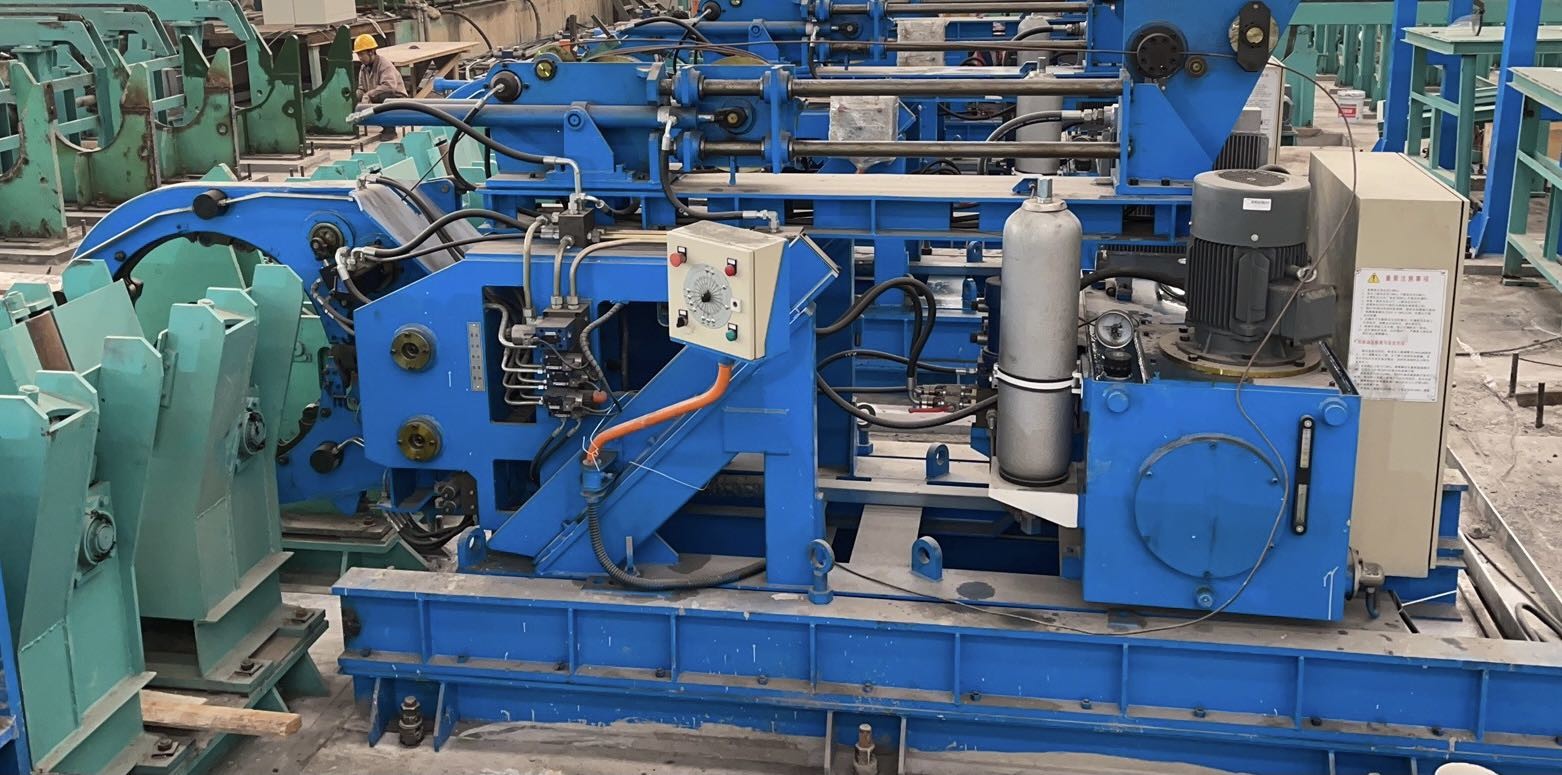

ISO 9001 Auto Steel Bar Metal Bundle Strapping Machine Bundling
Equipment
Technical Features:
| 1. | Lift cover type panel, easy maintenance. |
| 2. | New electric heating device, fast heating, long service life. |
| 3. | Single chip electronic control, complete functions, easy operation. |
| 4. | Four bundling methods to ensure a wide range of customer bundling
requirements. |
| 5. | Low cost of packing string. |
1. The wire guide groove was improved, the interface guide Angle
was increased, and the integral processing method of the guide
groove ensured the quality of the guide groove.The guide wheel on
the guide groove adopts the structure form of hanging installation,
so that the oxide sheet of the rod can automatically flow
out;Therefore, effectively solve the problem of wire rod jamming,
ensure that the wire rod delivery is smooth.
2. Whether the wire rod is in place, the indirect detection method
is widely used at home and abroad, sometimes because the quality of
the wire rod is not good or slip and other reasons, affecting the
reliability of the test.The company adopts the special wire rod in
place direct detection patent technology, directly detect the wire
rod, the detection is accurate and reliable, effectively solve the
resulting bundling fault, automatic bundling work for stability.
3. Good structural design and manufacturing process guarantee,
optimize the use of detection and control technology, so that Huju
automatic baler baling for the smooth, its speed, efficiency.
4. The hydraulic system pipeline adopts the card sleeve type
installation, the hydraulic cylinder seal adopts the import seal,
ensures the hydraulic system is reliable, achieves the hydraulic
system has no leakage.
5. The installation of our automatic baling machine is simple, user
only needs to provide 380V three-phase.
Performance index:
| 1. | Bundling diameter range | Φ100~Φ400 |
| 2. | Bundle bale weight | 1500KG-4000KG |
| 3. | Bundle bale shape | round |
| 4. | Suitable steel specification | deformed steel bar, (Φ10~140)round bar |
| 5. | Bundling object temperature | ≤300℃ |
| 6. | Bundling wire material and specification | Q195,specification is Φ5.5~7(recommend Φ6.5)green rod
|
| 7. | Bundling type | single wrap, single knot |
| 8. | Knot angle | 630° |
| 9. | Single track bundling time | 7~12 seconds |
| 10. | Working temperature | -10℃-40℃ |
| 11. | Control mode | manual and automatic with the function of interlocking
communication with the production line
|
| 12. | Installation weight | ～4tons |
| 13. | Power supply | three-phase four-wire AC380V+PE 50HZ |
| 14. | Installed gross capacity | 16KW |
| 15. | Contour size of the unit | 3600x1250x2050 |
| Condition: | New |
| Type: | Packing machine |
| Warranty of core components: | 1 Year |
| Core components: | Bearing, Gearbox, Motor, Gear |
| Voltage: | According to the actual condition |
| Power: | Negotiated |
| Dimension(L*W*H) | Customized |
| Output: | Negotiated |
| After-sales-Service Provided: | Field installation, commissioning and training, Field maintenance
and repair service |
| Applicable industries: | Manufacturing plant, construction works |
| Application: | Steel Industry |
| Color: | Customized |
| Billet size: | Customized |
Packaging Details: Wooden case packing or nude packing
Port: Tianjin
Lead Time:
| Quantity(Sets) | 1-1 | >1 |
| Est.Time(Days) | 30 | To be negotiated |
