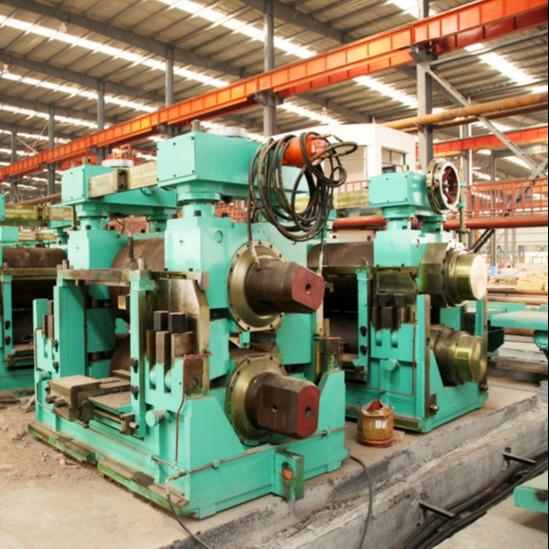

High Rigid And High Precision Steel Short Stress Path Rolling Mill
Feature:
The rigidity of the mill is high, the precision of the product is
high, and it is easy to realize negative deviation rolling. It can
realize symmetrical adjustment under pressure, stable operation and
high operation rate. The load of rolling mill is evenly
distributed, and the bearing life is more than 1.5 times higher
than that of ordinary rolling mill. The rolls of the rolling mill
should be pre-installed and adjusted before roll change, which can
save the roll change time, save the adjustment time of the rolling
mill and improve the operation rate.
Short stress mill is more and more popular with customers because
of its good elasticity and easy adjustment.
1. High rigidity
2. Hydraulic motor, independently adjustable
3. External polymer elastic damper
4. Transverse movement, lifting and locking hydraulic cylinders
5. Conventional models include 370, 470, 530, 610, etc.
Advantage:
| 1. | The high stiffness of the mill ensures the high precision of the
product, and it is easy to realize negative deviation rolling. |
| 2. | Can realize symmetrical adjustment. This is of great significance
for stable operation, improving operation rate, saving time for
maintenance and replacement of guide beam, reducing operation
accidents, avoiding process accidents such as elbow, impact and
roll wrapping, and improving guide service life. |
| 3. | Because the rolling mill changes the transfer path of force, the
concentrated load of the pressing screw is changed to the scattered
load on both sides of the bearing seat, so that the bearing and
bearing seat are under better stress, and the bearing life is more
than 1.5 times higher than that of the ordinary rolling mill, so as
to reduce the cost of the product. |
| 4. | The roll system of this kind of rolling mill should be
pre-installed and adjusted before roll change, and the new roll
system can be changed about 10min after stopping. And the new
roller is adjusted after rolling one or two steel can ensure that
the product qualified. Therefore, this rolling mill has good
pre-adjustment performance, fast roll change and high yield. |
Specification
| Model | 250-650 |
| Gear material | 20CrMnTi |
| Shell material | High quality cast steel |
| Production line capacity | 3-20ton/hour |
We supply the whole production line of steel, including steel wire
rod, rebar/ deformed bar, and its intelligent control system, such
as high-low voltage switchgear, AC drive cabinet, DC drive cabinet.
Rolling mill specializes producing 6-32mm wire rod, deformed rebar,
round bar.
We will configure different types of production lines according to
the customers' production requirements and specific conditions,
which include flexible, automatic continuous rolling mill,
semi-continuous rolling mill.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
