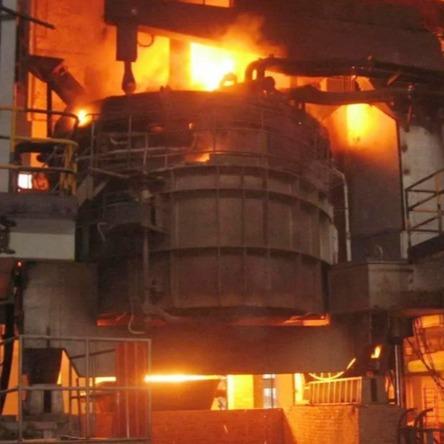

Vacuum Degassing Furnace VOD Refining Furnace In Steel Making
VOD vacuum refining furnace is in a vacuum environment for molten
steel smelting process, of molten steel in vacuum environment full
of blowing argon stirring, lower the partial pressure of the gas
impurities in the molten steel, thus reducing hydrogen, oxygen,
nitrogen content in liquid steel, improve the quality of molten
steel, blowing oxygen into the molten steel in vacuum environment,
can reduce the carbon content in the molten steel,To ensure that
the content of chromium in molten steel is not oxidized.
Function:
1. Production of high quality low alloy steel, low carbon steel,
bearing steel, alloy steel structure, stainless steel, die steel,
tool steel, ultra-low carbon steel, etc., the gas in molten steel,
inclusion, chemical composition of the steel has strict
requirements;
2. Vacuum feeding, fine tuning of alloy composition;
3. Vacuum degassing;
4. Vacuum-oxygen decarbonizing
5. Bottom blowing argon stirring
Feature:
| 1. | Uniform composition and temperature of molten steel to ensure
refining effect and smooth starting. |
| 2. | Wire feeding fine-tunes the composition of molten steel. |
| 3. | Oxygen blowing carbon, reduce the carbon content in molten steel,
smelting stainless steel and ferrite steel. |
| 4. | Vacuum degassing can reduce the gas content in molten steel and
improve the quality of steel. |
| 5. | Improve inclusions form, promote inclusions to float, and improve
the cleanliness of molten steel. |
| 6. | With temperature measurement, oxygen and sampling detection
functions. |
Main system composition of VOD device
| 1. | Tank cover car (or tanker) |
| 2. | Jacking system of tank cover |
| 3. | Tank cover device |
| 4. | Vacuum tank device |
| 5. | Vacuum charging |
| 6. | Oxygen lance |
| 7. | Oxygen device |
| 8. | Pumping equipment |
| 9. | Vacuum piping |
| 10. | Dedusting system |
| 11. | Argon blowing system |
| 12. | Cooling water distribution system |
| 13. | Re-pressing system |
| 14. | Temperature measurement system/sampling system |
| 15. | Wire feeding system |
| 16. | Cooling water circulation system |
| 17. | Steam feed system |
| 18. | Instrument, valve station |
| 19. | Tail analytic system |
| 20. | PLV control system |
| Place of origin: | Jiangsu, China |
| Condition: | New |
| Specification: | 30T-150T |
Type: | Steel making equipment |
| Voltage: | 380V |
| Power(kw): | Adjustable |
| Dimension(L*W*H) | Customized |
| Certification: | ISO9001 |
| Weight(T): | Customized |
| Warranty: | 1 Year |
| After Warranty Service: | Video technical support, Online support |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
